JUXTA Series accessories include mounting panels and racks, power supply units, power distributor units, DIN rails, CT protectors, input resistance modules, air supply units and configuration tools.
- Configuration Tools
- Power Supply Unit
- Panel
- Power Distributor Unit
- DIN Rail
- CT Protector
- Resistance Module
- F-Rack / P-Rack / Mounting Board
- Air Supply Unit
Details
Configuration Tools
| Model | Product Name | Specifications | Descriptions |
|---|---|---|---|

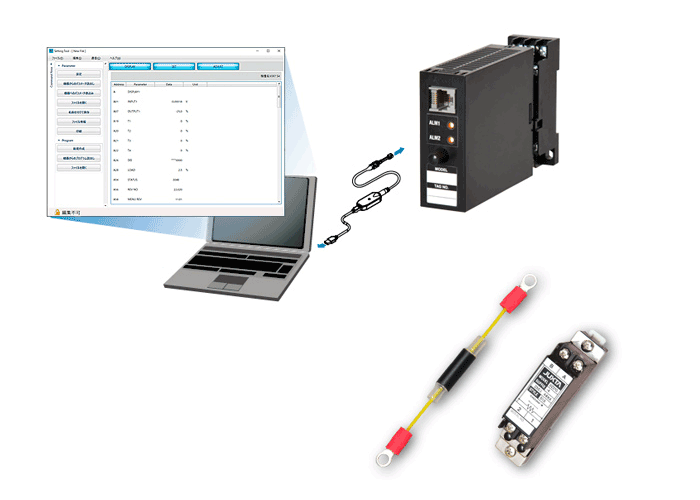

| VJ77 | PC-based Parameters Setting Tool | Field configuration tools to set, change and monitor the range, zero/span, burnout, parameters, computation program, etc. of the microprocessor based JUXTA signal conditioners and computing units. | Consisting of software, converter, cables, etc. |
Power Supply Units
| Model | Product Name | Input Voltage | Output Type | Descriptions |
|---|---|---|---|---|
| FPSU-64*C | Power Supply Unit | 100 to 220 V AC (85 to 264 V AC) | 24 V DC (1.7 A) | 40 W |
| X039 | 85 to 132 V AC | 2 4V DC (2.0 A) | 50 W, duplexed type (For D Series) |
Panels
| Model | Product Name | Mounting capacity of converters | Descriptions |
|---|---|---|---|
| FRK-04 | Panel | F Series: 4 units + FPSU or W Series: 3 units | |
| FRK-08 | F Series: 8 units + FPSU or W Series: 5 units | ||
| FRK-16 | F Series: 16 units + FPSU or W Series: 9 units |
Power Distributor Units
| Model | Product Name | Connecting capacity of converters | Descriptions |
|---|---|---|---|
| FTU-04 | Power Distributor Unit | F Series: 4 units | |
| FTU-08 | F Series: 8 units | ||
| FTU-16 | F Series: 16 units | ||
| FTF-04 | Power Distributor Unit (with Fuse) |
F Series: 4 units | |
| FTF-08 | F Series: 8 units | ||
| FTF-16 | F Series: 16 units | ||
| WTU-08 | Power Distributor Unit | W Series: 9 units |
DIN Rails
| Model | Product Name | Mounting capacity of converters | Descriptions |
|---|---|---|---|
| FRL-08 | DIN Rail | F Series: 8 units + FPSU or W Series: 5 units | |
| FRL-16 | F Series: 16 units + FPSU or W Series: 9 units |
CT Protectors
| Model | Product Name | Specifications | Descriptions |
|---|---|---|---|
| CTP-5 | CT Protector | Rated current: 5 A | For M Series |
| CTG-5 | For VJ Series |
Resistance Modules
| Model | Product Name | Specifications | Descriptions |
|---|---|---|---|
| RES-010 | Resistance Module | 10 Ω (±0.1%), rated power 0.5 W | For M/J Series |
| RES-050 | 50 Ω (±0.1%), rated power 0.5 W | ||
| RES-100 | 100 Ω (±0.1%), rated power 0.5 W | ||
| RES-250 | 250 Ω (±0.1%), rated power 0.5 W | ||
| RES-500 | 500 Ω (±0.1%), rated power 0.5 W | ||
| RES-01K | 1 kΩ (±0.1%), rated power 0.5 W | ||
| X010-010 | Resistance Module (with crimping terminal) |
10 Ω (±0.1%), rated power 0.5 W | For general purpose (M3, M3.5 or M4 screw terminal types are available) |
| X010-050 | 50 Ω (±0.1%), rated power 0.5 W | ||
| X010-100 | 100 Ω (±0.1%), rated power 0.5 W | ||
| X010-250 | 250 Ω (±0.1%), rated power 0.5 W | ||
| X010-500 | 500 Ω (±0.1%), rated power 0.5 W | ||
| X010-01K | 1k Ω (±0.1%), rated power 0.5 W |
F-Rack/P-Rack/Mounting Boards
| Model | Product Name | Mounting capacity of converters | Descriptions |
|---|---|---|---|
| X015 | F-Rack | F Series: 16 units | For connecting to VM1, VM2, VM4 or PM1 card. |
| X025 | F Series: 16 units | For connecting to MAC2 or PAC card. | |
| X017 | P-Rack | E/P (PH10/Z) 8 units, P/E (PF1/Z) 8 units and FPSU | For connecting to MAC2 card. |
| X018 | E/P (PH10/Z) or P/E (PF1/Z), total 16 units and FPSU | For connecting to VM1, VM2 or VM4 card. | |
| X019 | Mounting Board | E/P (PH10) or P/E (PF1), total 16 units and FPSU14/24 + FTU-16 | |
| X020 | P/E (PF1) 16 units and FPSU14/24 + FTU-16 |
Air Supply Units
| Model | Product Name | Connecting capacity of converters | Descriptions |
|---|---|---|---|
| PPU-01 | Air Supply Unit | For 1 unit use | For model PH10 |
| PPU-08 | For 8 units use | ||
| PPU-16 | For 16 units use |
Resources
Downloads
Instruction Manuals
- Model FPSU Power Supply Unit (505 KB)
- X010 External Precision Resistor (120 KB)
- *Discontinued: Model WTU-08 Power Distributor Unit (70 KB)
- *Discontinued: Model FTF-16 Model FTF-08 Model FTF-04 Power Distributor Unit(with Fuse) (89 KB)
- *Discontinued: FTU-16, FTU-08, FTU-04 Power Distributor Unit (83 KB)
General Specifications
- Model FPSU Power Supply Unit (252 KB)
- CTP-5 CT Protector (41 KB)
- *Discontinued: FTU-16, FTU-08, FTU-04 Power Supply Unit (52 KB)
- *Discontinued: FTF-16, FTF-08, FTF-04 Power Distributor Unit (with Fuse) (60 KB)
- X017/X018 P-RACK (53 KB)
- X019, X020 Mounting Board (70 KB)
- X010 External Precision Resistor (349 KB)
- Model RES Resistance Module (36 KB)
- *Discontinued: FRK Panel (107 KB)
- PPU-01, PPU-08, PPU-16 Air Supply Unit (760 KB)
Engineering Tools
- Model FTU-04 Power Distributor for 4-Channels (17 KB)
- Model WTU-08 Power Distributor for 8-Channels (29 KB)
- FTU-16 Power Distributor for 16-Channels (19 KB)
- Model FTU-08 Power Distributor for 8-Channels (25 KB)
- Model FRK-04 Standard Rack Mounting Frame for 4-Channels (21 KB)
- Model CTP-5 CT Protector (18 KB)
- Model FTF Power Distributor (51 KB)
- Model FRK-16 Standard Rack Mounting Frame for 16-Channels (20 KB)
- Model FRK-08 Standard Rack Mounting Frame for 8-Channels (21 KB)
- Model RES Resistor Module (21 KB)
- Model FPSU Power Supply Unit (173 KB)
