Manual Setter for SV/MV YS1350/YS1360

What Are the Benefits of the YS1350 and YS1360 Manual Setters?

• A full-dot, semi-reflective color LCD Clear visibility of the display screen is ensured even in direct sunlight in the early morning and late afternoon. The user can freely access a desired operation screen from meter, trend, bar graph, alarm, and event displays. All parameters can be set via the front panel display.
• The parameters can all be set by operation on the front panel (no need to draw out the internal unit).
• Parameters can also be set using YSS1000 Setting Software available separately.
• Can be driven by either an AC (100 V) or DC (24 V) power supply. (Must be specified upon ordering if using a 220–240 V DC power supply.)
• Dust- and splash-proof IP54 compatible faceplate (for basic type only)
• Depth 250 mm (only for the basic type)
• No battery or capacitor is used for memory backup. No maintenance is required because batteries and backup capacitors are not used.
• CE mark (for basic types and YS100-compatible type only)
• FM non-incentive explosion protection (optional for basic types only) (Under an application)
• Communication (option)
  Ethernet (Modbus/TCP) (for basic types only)
  RS485 (PC Link, Modbus, YS protocol, unavailable for YS80 internal unit-compatible type)
• Compatibility with the YS100 series Setting and control operations can be done with the same feel. In the case of the basic type, terminal-to-terminal pitches differ but the signal-to-terminal arrangement is almost the same. The following functions are included to ensure compatibility with the SMST:
  ▪ Meter Display was added to the Operation Display.
  ▪ Housing for replacement purposes (SHUP-000 separately available)

Easy to Use Display

YSS1000 Configuration and Programming Software

Programming Demonstration Videos

• Sample parameter settings
• Sample event messages

Three Connection Modes

Connection modes: USB, Ethernet or RS485
When connecting via RS485 or Ethernet, a communication option is required on the main unit.

Full Set of Computation Functions

• Supports parameter setting for all YS1000 models

Password Protection Function

Passwords can be assigned to user programs to prevent unauthorized access to proprietary programs.
A password on the main unit prevents unexpected changes in the engineering parameters.

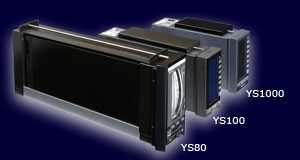

Designed with a Lightweight, Compact Case

Provides for Greater Freedom of Instrumentation Design

Compact, lightweight design allows the use of smaller and less expensive panel. Moreover, it allows attachment to doors which was previously difficult.

Simple Exterior

High Reliability

Control Output Backup Function. The control output backup function comes standard with YS1000 series controllers (YS1700 and YS1500) and the Manual Station for MV Setting (YS1360).

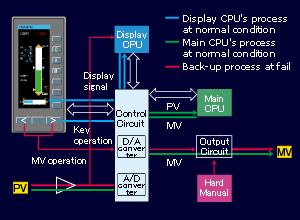

Dual CPU

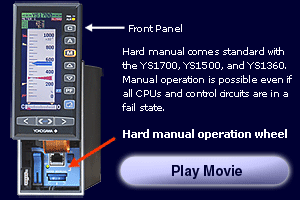

Manual Operation-"Hard Manual"

Battery Free Memory Backup

Nonvolatile memory is used for memory backup. Service life is improved because no batteries, backup capacitors, or other components are used.

AC/DC Power Supply Resists Powerline Fluctuations

The AC/DC (100 V /24 V ) power supply powers the instrument to provide consistent performance.Also accepts DC power regardless of polarity (specify 220 V power supply when ordering).

Improved Basic Control Performance

The YS1000 series achieves higher performance than previous models (YS100 series).

• I/O accuracy
  Voltage input accuracy: ±0.2% ⇒ ±0.1%
  Voltage output accuracy: ±0.3% ⇒ ±0.1%
  Current output accuracy: ±1.0% ⇒ ±0.2%
• Internal data resolution of the I/O signal: 1/1000 ⇒ 1/10000
• Internal computation resolution of PID and other computations: 1/4096 ⇒ 1/65536

Controller Online Replacement Function (Portable Manual Station)

Use the YS110 portable manual station when exchanging or performing maintenance on a controller. You can switch to the spare controller without interrupting the control output.

Front Panel Conforms to the IP54 Waterproof Standard

Tougher Environmental Resistance.

Other Specifications

• CE Mark (for basic type and compatible type for YS100)
• FM nonincendive approved (FM Class I, DIV 2)
• CSA safety and nonincendive approved (Class I, DIV 2)

Powerful and Flexible

Ethernet support. The instrument can be easily connected to DAQWORX, SMARTDAC+, general-purpose SCADA, and OPC servers via Ethernet (Modbus/TCP).

Ethernet : Available to the YS1000 basic type. Modbus/TCP server function (one connection).

Communication with PLC

Connections are enabled using the FA-M3' s UT link module and the RS485 communication function. No programming is necessary to exchange data between the instrument and the FA-M3.

The YS1000 can also be connected to PLCs of various manufacturers via the Modbus communication protocol.


Communication with CENTUM

As with previous models, communication with Yokogawa's DCS (CENTUM) is supported. This is ideal for DCS backup in chemical plants and other applications requiring extreamly high reliability.

Applicable Models: YS1700,YS1500,YS1350,and YS1360

Compatibility
