Y-Flow®- YFFC Orifice Flow Computer (DISCONTINUED)

Applications

Pre-configured Applications

AGA 3 Orifice Measurement	Tube/Run Switching
AGA 5 Fuel Gas Calorific Measurement	Turbine Meter Profiling
AGA 8 Gas Density Measurement (Detailed & Gross Methods I & II)	Compliance Alarming
AGA-7 Measurement of Natural Gas by Turbine Meter	Tank Level Monitoring
AGA-9 Measurement of Gas by Multi-Path Ultrasonic Meters (using AGA-7)	V-Cone Measurement
AGA-11 Measurement of Natural Gas by Coriolis Meter (using AGA-7)	Plunger Lift
NX-19 Gas Density Measurement	--
Emergency Shutdown	--
Valve Control	--

Wellpad Monitoring & Control

Yokogawa’s Y-Flow^® YRTU is an effective and precise remote management controller that allows for maximized production while ensuring the production process is safe and reliable. By taking inputs from various instrumentations, the YRTU will process and monitor the data through pre-programmed or user-designed applications. The data is logged, stored and transmitted to a host/SCADA system via Ethernet (Modbus Serial, Modbus TCP) or wireless communication protocols.

Gas Measurement

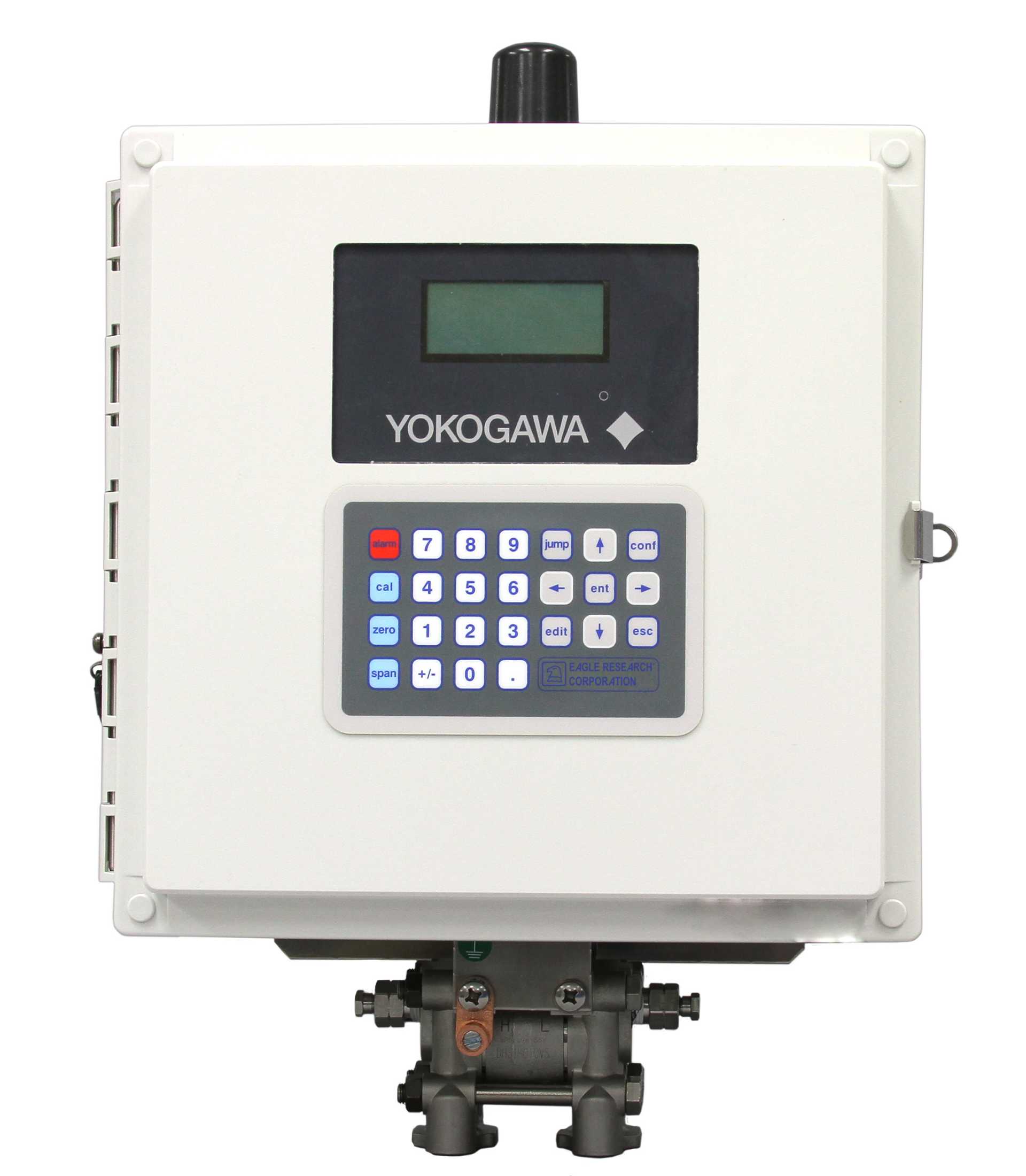

Yokogawa’s Y-Flow^® YFFC provides timely, accurate and reliable measurements anywhere, anytime. By combining the Y-Flow^® with Yokogawa’s state-of-the- art coriolis, vortex and multivariable meters, accurate gas measurements are easier than ever. From orifice flow to steam measurement, Yokogawa’s Y-Flow^® YFFC provides superior accuracy and reliability that ultimately reduces CAPEX and increase profit.

Gas Control

In an industry where safety and reliability is priority, Yokogawa’s Y-Flow^® provides the control and peace of mind for operators and engineers alike. From emergency shutdowns to valve control and positioning, Yokogawa’s Y-Flow^® is there to ensure the process is safe and sound.

Yokogawa EJX910A Multivariable Transmitter Accuracy Specifications

Specifications for the EJX910A are condensed for the purpose of this document. Please see GS01C25R01-01EN for more detailed information.

The EJX910A uses the established DPharp pressure sensor technology that allows for simultaneous measurement of differential pressure and static pressure (absolute or gauge) from one sensor. Out of all the Yokogawa pressure transmitters, the EJX910A has the best accuracy for combined DP and SP measurement, which makes it an excellent choice for flow calculations with a RTU.

Measurement Span/range		DP inH20	SP psia
M	Span	2 to 400	145 to 3300
	Range	-400 to 400	0 to 3300
H	Span	-10 to 2000	145 to 3300
	Span	-2000 to 2000	0 to 3300

Reference Accuracy
(Includes terminal-based linearity, hysteresis, and repeatability)

• DP Up to ±0.04% of span standard
• SP ±0.1% of span (Absolute)

Long Term Stability (All normal operating conditions, including overpressure effects)

• DP ±0.1% of URL per 10 years Turndown
• DP 200:1
• SP 25:1

YFFC Technical Specification

Input Power Supply

• Input Power: 12-30 VDC
• One (1) power supply/rechargeable battery input with screw terminals
• Integrated solar panel charger supporting up to 20W solar panel

Power Monitoring and Battery Backup

• Supply voltage monitoring through A/D with low supply voltage alarm
• 3.6 VDC lithium ion battery backup for database, history, audit trail, time/date and RAM
• 20W on board battery charger, 90W maximum
• 32AH solar panel battery (optional)

Performance

• Processor: ARM Dual Core 32-bit
• Flash Memory: 32 megabit
• SRAM Memory: 32 megabit
• A/D: 16-bit with optional HART filtering

Display Options

• 4 line alphanumeric display with push button keypad

Operating Temperature

• -40C to 70C (-40F to 160F)

Communications Options

• Standard: Two (2) Serial RS-232/RS-485
• One (1) Ethernet Port, (1) USB Host Port, (1) USB Device Port
• Wireless Communication: Cellular (CDMA/GSM), Radio (spread spectrum licensed & unlicensed frequency), Satellite (LEO &GEO)
• Protocols: MODBUS TCP/IP, MODBUS Serial, ERC Hex ASCII (native)

Input and Output (I/O)

• Analog Inputs: Four (4) universal analog inputs, 0-5VDC or 4-20mA (Requires 250 ohm resistor)
• RTD Inputs: One (1) temperature probe
• Digital Input/Output: Two (2) form A/C pulse input, Two (2) form C relays, Two (2) DI, Two (2) DO

Software

• Field Manager

Optional Expansion Board Capability (9010449)

• Two (2) Serial RS-232/RS-485
• Four (4) universal analog inputs
• One (1) analog output
• One (1) RTD temperature probe
• Two (2) form A/C pulse input
• Three (3) DI, Three (3) DO
• Opto 22 G4 Voltage Signal Conditioner

Approvals

• UL Class I, Div II Group A,B,C,D (pending)

Warranty

• 4 years limited warranty

Accessories

Y-Flow^® Extender Board

In addition to the standard I/O offered on the processor board, the FFC and RTU have the capability to expand I/O count by adding the Y-Flow^® extender board. Furthermore, the extender board allows for Opto 22 G4 AC and DC input/output modules for applications that require switching loads such as DC relays, solenoids, motor starters, lamps and indicators.

Type	Count
Serial RS232/RS485	2
Analog Inputs	4
Analog Outputs	1
RTD (Temp Probe)	1
Pulse Inputs	2
Digital Inputs	3
Digital Outputs	3
Opto 2 G4 Slots	2
