Life Science

Early stage embryo

Our microscopy and life sciences solutions are designed to support applications from basic research to drug discovery and pre-clinical trials.

Yokogawa’s high content analysis systems and dual spinning disk confocal technologies are used in regenerative medicine, pharmaceutical research, and precision medicine to deliver rapid, high-resolution live cell imaging.

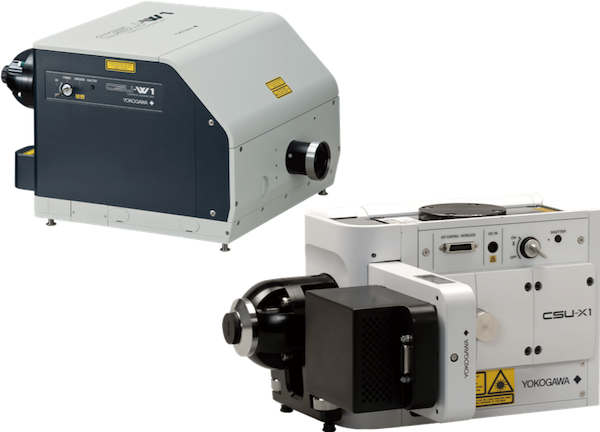

  • Spinning Disk Confocal CSU

    Using our proprietary dual spinning disk design, Yokogawa’s confocal scanner units transform optical microscopes by enabling real-time live cell imaging.

    See More
  • OpreX Informatics Manager

    Yokogawa Electric's OpreX Informatics Manager is an information-integrated solution that goes beyond electronic lab notebooks by optimizing human and material resource management in terms of skills and scheduling.

    See More

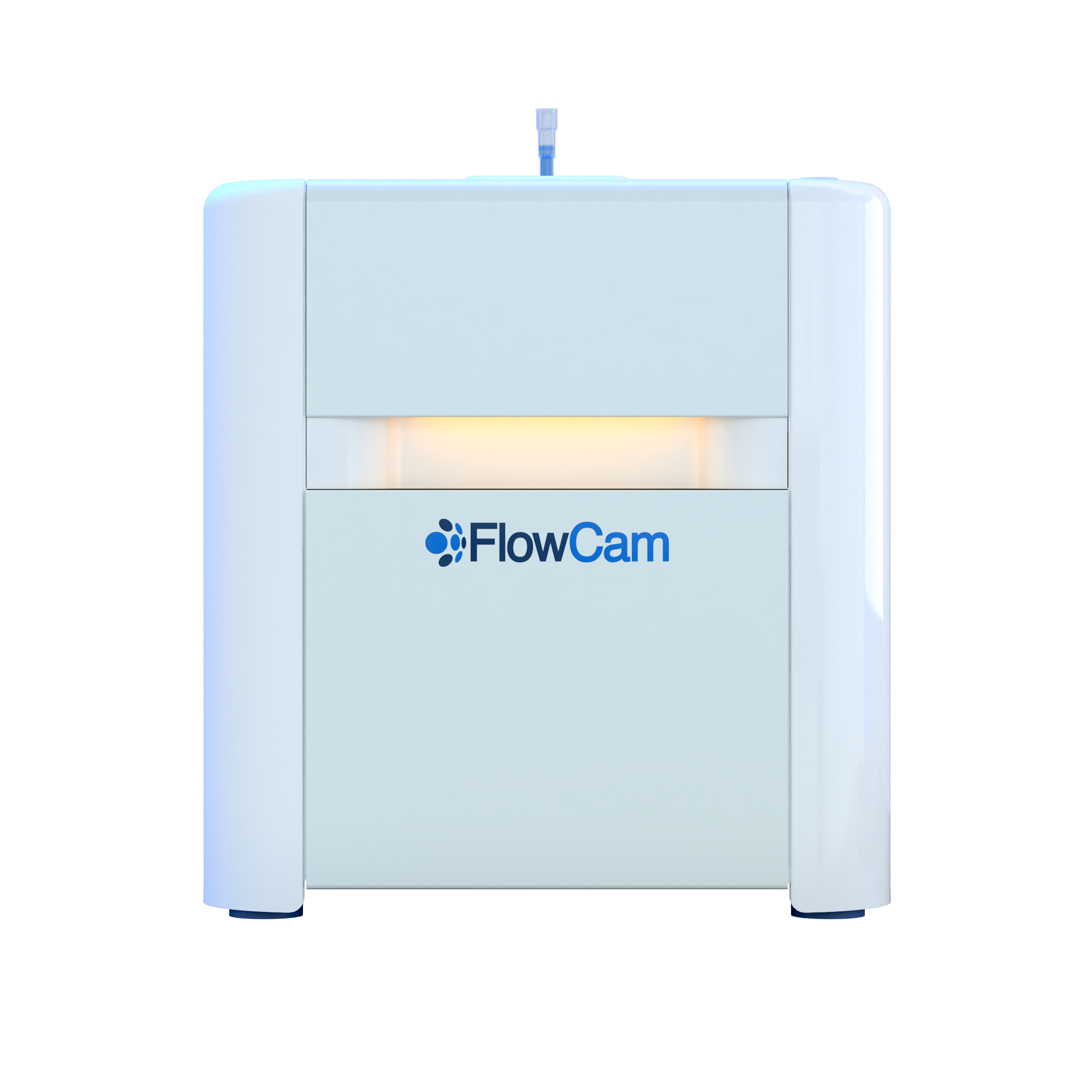

  • FlowCam Flow Imaging Microscopy

    With the FlowCam you can analyze particles accurately, reliably and quickly using automated imaging technology to advance your research, increase productivity, and ensure quality.

    See More
  • Bioreactor

    The replacement of manual processes with automation is a trend in the biopharmaceutical industry. For complete automation of fed-batch mammalian cell culture, the control of glucose, a key nutrient source, is critical. Through in-line sensing and model predictive control software, automated feeding and a stable concentration of glucose in bioreactors can be achieved.

    See More

Details

We post our information to the following SNSs.
Please follow us.



Yokogawa Life Science

•Twitter @Yokogawa_LS
•Facebook Yokogawa Life Science
•LinkedIn Yokogawa Life Science
•YouTube Life Science Yokogawa



Yokogawa's Official Social Media Account List

Social Media Account List

Principles of Spinning disk confocal

The most common conventional confocal microscopes use a single laser beam to scan a specimen, while the CSU scans the field of view with approximately 1,000 laser beams, by using microlens-enhanced Nipkow-disk scanning: in short, CSU can scan 1,000 times faster.

By using a disk containing microlens arrays in combination with the Nipkow disk, we have succeeded in dramatically improving the light efficiency and thus successfully made real-time confocal imaging of live cells possible.

The expanded and collimated laser beam illuminates the upper disk containing about 20,000 microlenses (microlens array disk). Each microlens focuses the laser beam onto its corresponding pinhole, thus, effectively increasing laser intensity through pinholes placed in the pinhole array disk (Nipkow disk).

With the microlens, backscattering of laser light at the surface of the pinhole disk can be significantly reduced, thus, dramatically increasing the signal to noise ratio (S/N) of confocal images.

About 1,000 laser beams passing through each of the pinholes fill the aperture of the objective lens, and are then focused on the focal plane. Fluorescence generated from the specimen is captured by the objective lens and focused back onto the pinhole disk, transmitted through the same holes to eliminate out-of-focus signals, deflected by the dichroic mirror located between microlens array disk and the Nipkow disk to split fluorescence signal from reflected laser, passed through emission filter and then focused into the image plane in the eyepiece or camera.

The microlens array disk and the Nipkow disk are physically fixed to each other and are rotated to scan the entire field of view at high speeds, thus, making it possible to view confocal fluorescent images in real-time through the eyepiece of the CSU head.

As compared to conventional single point scanning, multi beam scanning by the CSU requires a significantly low level of light intensity per unit area, which results in significantly reduced photo bleaching and phototoxicity in live cells.

Spinning Disk Confocal

microlens / fastsacnning / minimal photo bleach / high resolution

Microlens-enhanced Nipkow Disk Technology

Microlens-enhanced Nipkow Disk Technology

Comparison of scanning method

point scanning

Point Scanning
1 line scan time=1[ms]
1000 lines/image
Scan lines=1000 [lines]
1×1000=1000 [ms]

disk scanning

Disk Scanning by CSU
Rotation Speed=10000 [rpm]=41.7[rps]
30°Rotation/image
1÷( 41.7×30/360 )= 0.5 [ms]





January 8,2021

Sales release : Advanced Control Bioreactor System BR1000 was released.
The Advanced Control Bioreactor System BR1000 automates lab-scale mammalian cell culture with highly accurate real-time monitoring and advanced process control.

Click Here For More Info

August 20,2020

Discovering Potential Covid-19 Therapies using High Content Screening

Date: Wednesday August 26th 2020
Time: 12pm (EST) 9am (PST) 5pm (London)

Abstract:
In this webinar, Professor Jonny Sexton discusses a pipeline, developed in the Sexton lab, for the quantitative high-throughput image-based screening of SARS-CoV-2 infection to identify potential antiviral mechanisms and allow selection of appropriate drug combinations to treat COVID-19. This webinar presents evidence that morphological profiling can robustly identify new potential therapeutics against SARS-CoV-2 infection as well as drugs that potentially worsen COVID-19 outcomes.

Click Here for  Registration

June 5,2020

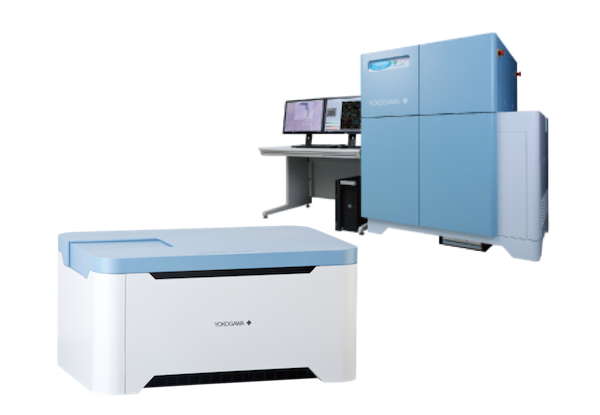

Sales release : High-throughput Cytological Discovery System CV8000 : 20x water immersion lens option was released.

 Click Here For More Info

March 18,2020

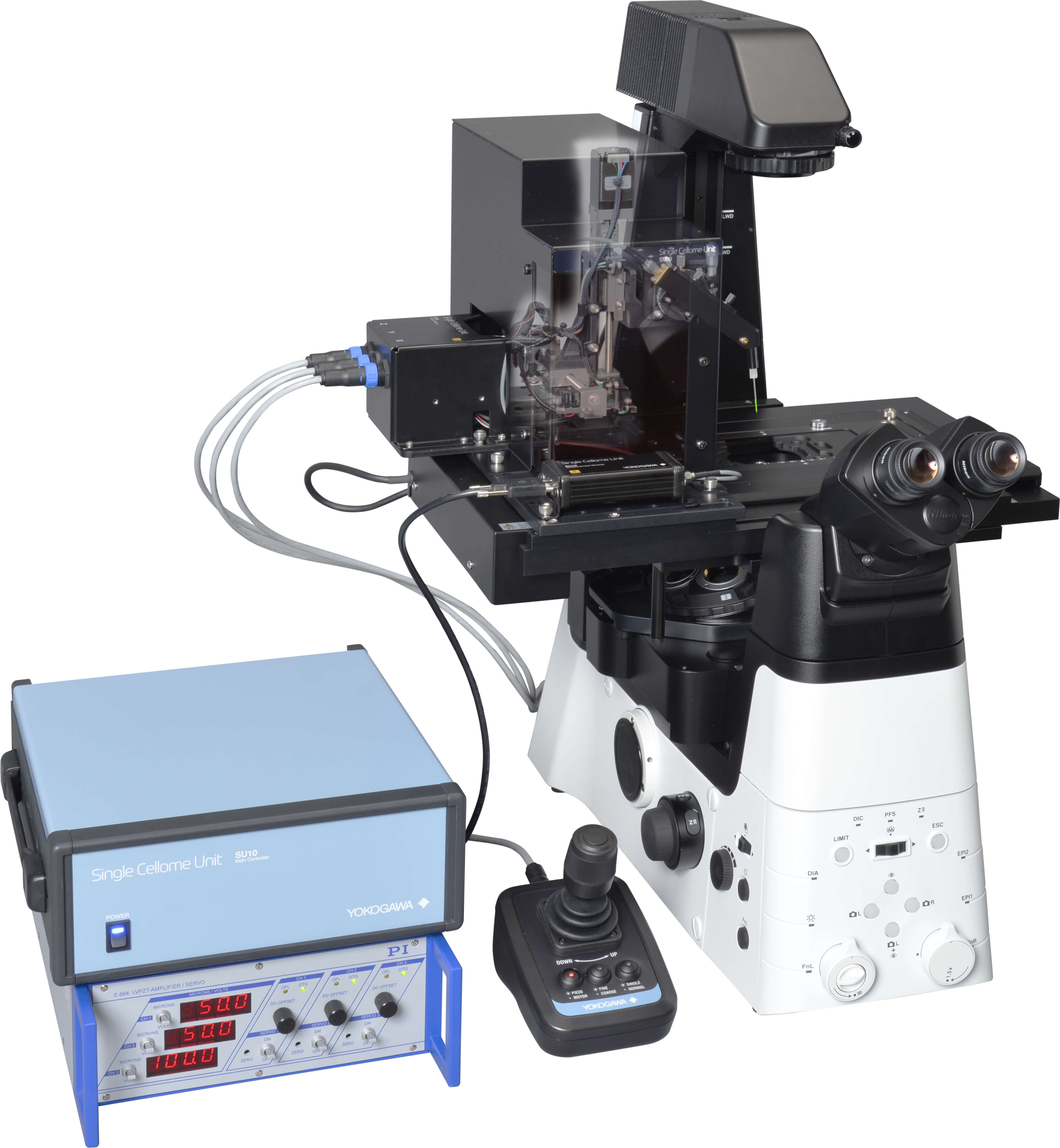

Sales release : Single-cell Analysis Solution Single Cellome Unit SU10

 Click Here For More Info

January 20,2020

Sales release : High Content Analysis Software CellPathfinder update and Deep learning option was released.

Deep learning function succeeded in dramatically improving by recognizing patterns in images to identify what the images show.

Link to products High Content Analysis Software CellPathfinder
Find out more about Deep learning

January 15,2020

Society for Laboratory Automation and Screening (SLAS) 2020

January 25-29, 2020
Booth No. 1148

We will exhibit high content analysis system "CellVoyager CQ1".

Link to products
Confocal Quantitative Image Cytometer CQ1

-Poster-

1207-C:
A Live Cell High Content Assay for Cellular Lipid Droplets
January 28, 2:00-3:00 pm

Find out more about SLAS 2020

December 6,2019

Sales release : A flat-top beam shaper option CSU-W1 Uniformizer

 Click Here For More Info

November 18,2019

ASCB/EMBO 2019

December 8-10, 2019
Booth No. 300

We will exhibit Spinning disk confocal "CSU-W1 SoRa" and high content analysis system "CellVoyager CQ1".

Link to products
Super Resolution Confocal Scanner Unit : CSU-W1 SoRa
Confocal Scanner Unit : CSU-W1
Confocal Quantitative Image Cytometer CQ1

-Tech talks-

December 9, 3:00-4:00 pm – Theater 2, Learning Center

Uniformizer, a new flat-top beam shaper for CSU-W1 & Introduction to new approach for single cell analysis

Presenter: Naoki Ando: Product specialist of CSU, Masahiro Kajita: Project manager of “Single Cellome”

Yokogawa continues to make improvements to provide the best products for biology researchers. So far, CSU has fulfilled the researchers' wish to take images fast, wide, clear and in super-resolution. This time, we will introduce the new option “Uniformizer” of our product “CSU-W1”. This unit uniformizes the laser illumination and enables quantitative imaging. This provides a large seamless montage image between each field. Furthermore, Yokogawa also takes new challenge for the next field, which is single cell analysis. As a trial, it had prototyped automated single cell sampling system, and it has possible to investigate the molecular characterization of each single cell. This tech talk will introduce 1) ”Uniformizer” and 2) new approach for single cell analysis, which could perform with confocal microscopy.

Find out more about ASCB/EMBO 2019

October 3,2019

SLAS 2019 Advanced 3D Human Models and High-Content Analysis Symposium

October 21-12, 2019
The Francis Crick Institute, London, United Kingdom
Booth No. 5

We will exhibit high content analysis system "CellVoyager CQ1".

Link to informations
Confocal Quantitative Image Cytometer CellVoyager CQ1

Find out more about SLAS 2019 Advanced 3D Human Models and High-Content Analysis Symposium

April 8,2019

FOM 2019

April 14-17, 2019
Queen Elizabeth II Center
Booth No. 42

We will exhibit Spinning disk confocal "CSU-W1 SoRa".

Link to products
Super Resolution Confocal Scanner Unit : CSU-W1 SoRa
Confocal Scanner Unit : CSU-W1

Find out more about FOM 2019

January 16,2019

SLAS 2019

February 4-6, 2019
Walter E. Washington Convention Center
Booth No. 214

We will exhibit high content analysis system "CellVoyager".

Link to products
CellVoyagerTMCV8000 High-throughput Cytological Discovery System
Confocal Quantitative Image Cytometer CQ1
High Content Analysis Software CellPathfinder

*Poster presentation is planned. Details will be posted as soon as it is decided.

Find out more about SLAS 2019

October 24,2018

ASCB/EMBO 2018

December 9-11, 2018
Booth No. 845

-Tech talks-

December 9, 3:00-4:00 pm – Theater 2, Learning Center

Super Resolution Confocal Scanner Unit CSU-W1 Sora

Presenter: Takuya Azuma: Chief designer of CSU-W1 Sora,
Yoshitaka Sekizawa: Product manager of CSU-W1 Sora

Yokogawa will introduce our brand-new product “CSU-W1 SoRa.” This is a spinning disk based super resolution confocal scanner unit. In this talk, we will introduce features and principles of this product and we will show beautiful image samples taken by “CSU-W1 SoRa”. Features of “CSU-W1 SoRa”: 1) XY resolution of approx. 120nm. XY resolution has been improved by approximately 1.4x the optical limit based on spinning-disk confocal technology. Furthermore, a final resolution approximately twice the optical limit is realized through deconvolution. 2) Ideal for super-resolution live cell imaging. Just like the CSU, high-speed real time imaging can be performed with super-resolution. In addition, live cell imaging is possible, reducing bleaching and phototoxicity. 3) The CSU is easy to use. Super-resolution images can be observed in real time without any specific preparation of sample. Deep position observation is made possible through optical sectioning based on confocal technology. 4) Upgradable from CSU-W1. If you already have CSU-W1, you can add SoRa disk.

Find out more about ASCB/EMBO 2018

September 14,2018

Sales release : High Content Analysis Software CellPathfinder

 Click Here For More Info

July 27,2018

Sales release : High-speed Super resolution Confocal Scanner CSU-W1 SoRa

 Click Here For More Info

June 11,2018

2018 SLAS Europe

March 01,2018

Sales release : High Content Data Management System CellLibrarian

 Click Here For More Info

December 29,2017

SLAS 2018

February 3-7, 2018

December 29,2017 Sales news : The Discontinuation of CellVoyagerTM CV7000S High-throughput Cytological Discovery System
September 05,2017

Sales release : CellVoyagerTMCV8000 High-throughput Cytological Discovery System

 Click Here For More Info

January 19,2017

SLAS High-Content Screening Conference 2017

Find out more about SLAS High-Content Screening Conference 2017

April 04,2016

Poster presentation in 3D Cell Culture 2016, 19-21 April 2016, Konzerthaus Freiburg/Germany

Yokogawa Electric Corporation will present data obtained by our confocal image cytometer CQ1 in “3D Cell Culture 2016: How close to ‘in vivo’ can we get? Models, Application & Translation”. The poster will show the results of 3D live cell imaging and analysis of the migration and the network formation of HUVEC cells in a multilayered cell sheet. The results demonstrate that CQ1 is an excellent research tool in the field such as regenerative medicine and drug discovery screening.

*Data were provided from BioProcess Systems Engineering Lab., Dept.Biotech., Grad. Sch. Eng., Osaka University.

Poster presentation in 3D Cell Culture 2016

February 10,2016 Yokogawa Concludes Distribution Agreement with Optec, LLC for Sale of Confocal Quantitative Image Cytometer CQ1 at the markets of OPTEC activity
October 01,2015 Sales release : Label-free Morphological Analysis Software CellActivision
