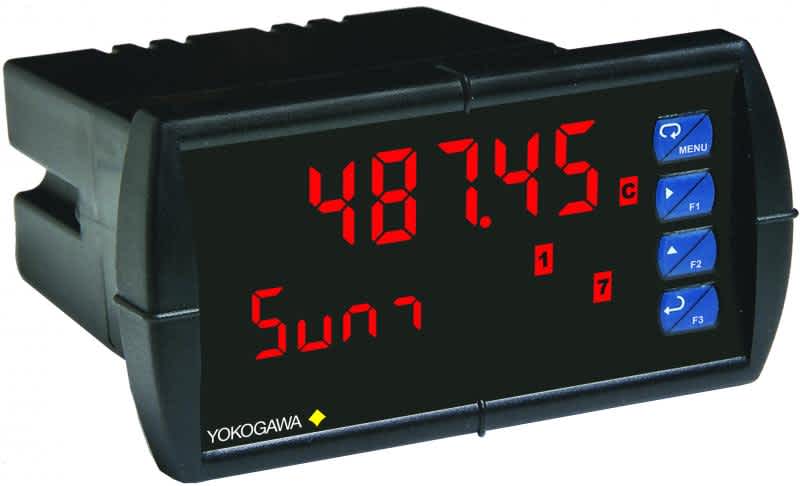

The PROPLUS Series offers a complete line of meters; including Process, Dual-Input, Stain Gauge, Temperature, Flow Rate, Batch Control, and Volts/Amp. These meters are available with 2 or 4 relays with a 4-20 mA output. Features found on the PROPLUS digital panel meters include a dual-line 6-digit display (999,999), advanced input signal conditioning selections, user programmable function keys, Modbus RTU serial communications, and optional expansion modules.
-
YPP6000 Process Meter
- PROPLUS YPP6000 Process Meter
- Accepts inputs of 0-20mA, 4-20mA, 0-5V, 1-5V, and +/- 10V
- 32-Point, Square root, or Exponential Linearization
-
YPP6060 Dual-Input Process Meter
The PROPLUS YPP6060 Dual-Input Process Meter accepts two simultaneous inputs of 0-20mA, 4-20mA, 0-5V, 1-5V, and +/- 10V. Additional math features include addition, difference, average, multiplication, division, min., max., weighted average, ratio, concentration, & more.
-
YPP6100 Strain Gauge Meter
The PROPLUS YPP6100 is a multipurpose, easy to use digital strain gauge & load cell meter ideal for weighing and force measurement applications. It accepts mV input signals up to 300 mV. The basic model includes an isolated 5 or 10VDC Sensor power supply that can be used to power the input Sensor or 24 VDC for other devices.
-
YPP6200 Analog Input Flow Rate/Totalizer
- YPP6200 Flow Rate Indicator/Totalizer
- Displays flow rate and total from a flowmeter with analog output
- 6 digit, dual-line display
- Program for a wide variety of display configurations
-
YPP6210 Analog Batch Controller
The PROPLUS YPP6210 is an easy to use batch controller ideal for simplifying independent batch control operations where local control is preferred to expensive and expansive plant operation systems. Inputs include 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V.
-
YPP6300 Pulse Input Flow Rate/Totalizer
The YPP6300 meter is specifically designed for displaying flow rate and total from a pulsed input provided by an open collector, NPN, PNP, TTL, switch contact, sine wave, or square wave output flow meter. The YPP6300 is particularly well-suited for flow applications because its six-digit, dual-line display can be programmed for a wide variety of display configurations.
-
YPP6310 Pulse Input Batch Controller
The PROPLUS YPP6310 is an easy to use batch controller ideal for simplifying independent batch control operations where local control is preferred to expensive and expansive plant operation systems. Inputs include Pulse, Open Collector, NPN, PNP, TTL, Switch Contact Sine Wave (Coil), and Square Wave.
-
YPP6400 AC/DC Voltage & Current Meter
- Yokogawa YPP6400 easy, multipurpose high voltage/current input meter
- Measures direct voltage and current or output from voltage shunts and current transformers
- Displays voltage, current, and apparent power
-
YPP7000 Temperature Meter
- PROPLUS YPP7000 Digital Temperature Meter
- Accepts J, K, T, E, R, S, B, N, C thermocouple, 100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
- 1° or 0.1° display resolution
Downloads
Brochures
- PROPLUS Series Presentation (5.5 MB)
- PROPLUS Series Register Tables (661 KB)
- PROPLUS Series Digital Panel Meters & Controllers (1.4 MB)
Software
- PROPLUS Series Software Guide (395 KB)
Technical Information
- PROPLUS Series Safety Interlock (187 KB)
