Name: EJX118A DP Transmitter with Remote Diaphragm Seals (DISCONTINUED)
Brand: Yokogawa
SKU: ejx118a

Notice: This product was discontinued on Nov 25, 2015.

Customer Portal
FAQs
Brochures
Instruction Manuals
General Specifications
2D/3D Configurator
Technical Support

The EJX118A is a differential pressure transmitter with remote diaphragm seals. Featuring the DPharp Digital Sensor, it offers the performance and device intelligence needed for greater process insight.

EJX118A DP Transmitter with Remote Diaphragm Seals-Overview

What Are the Benefits of Differential Pressure Transmitters?

Routine maintenance is easier with Yokogawa differential pressure transmitters.

Extended Calibration Intervals

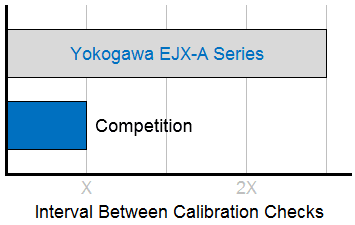

Yokogawa EJX-A series pressure transmitters have a long-term stability under all operational conditions. As you gain experience with these transmitters, you will be able to extend the time between calibration checks.

Quicker Maintenance = Less Downtime

Multiple Communication Options

Yokogawa offers several platforms to communicate to your transmitter.

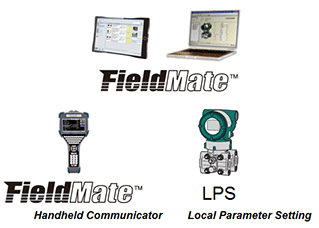

FieldMate is a PC based communication platform that can communicate with your transmitter and manage your entire instrument inventory.

FieldMate HHC is a traditional hand-held platform that allows you to take that information into the field.

Forgot your HHC? No problem. The LPS feature on the transmitter allows you to update 9 parameters without the use of an HHC.

Quicker Maintenance = Less Downtime

How to Reduce Total Cost of Ownership?

Plants run better with Yokogawa differential pressure transmitters. At its heart, Yokogawa's differential pressure transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.

Digital Performance

Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.

Poor Performance = Lost Money

Superior Design

All remote seal system on the market use fill fluid to 'transmit' the process pressure from the remote diaphragm seal to the pressure sensor in the transmitter. The physical properties of the fill fluid change has process temperature and ambient temperature change causing the transmitter to measure inaccurately. This effect get worse the longer the capillaries are. The key is to filter out this 'noise' to get an accurate, consistent, reliable measurement. Yokogawa has a superior design, manufacturing process, and features to reduce this 'noise'.

Signal Characterization

Signal characterization is a versatile function available on all Yokogawa pressure transmitters. The function is used to compensate the analog 4 to 20 mA output signal for non-linear applications. Such applications include tank strapping or flow measurements; but, it can be used in any application where the relationship between the pressure input and the desired output signal are known. This feature can use up to 10-points.

Greater Flexibility = Found Money

How Are Differential Pressure Transmitters Built?

Ruggedly constructed differential pressure transmitter can help your plant reduce failures. Yokogawa's DP transmitters have construction features that are designed to allow it to outlive your plant. Four-bolt pressure retaining design, Active DPharp sensor, and dual seal certified to ANSI/ISA 12.27.01 - all design features to extend the life of the transmitter.

Ruggedness = Reliability

Inherently Safe

All Yokogawa EJX-A series pressure transmitter are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3. They are certified for single transmitter use in SIL 2 rated safety applications and dual transmitter use in SIL 3 rated safety applications with no special option required. With Yokogawa EJX-A transmitters, no longer will you have to maintain two separate inventories - one for production applications and one for safety applications. How much will that save your company? The certificates are available under the "Download" tab above.

Inherently Safe = Reliability

EJX118A Overview

Measurement Types
Primary Variable	Differential Pressure
Secondary Variable	Static Pressure
Reference Accuracy
Primary Variable	±0.15% of Span
Secondary Variable	±0.2% of Span
Response Time
Primary Variable	200 msec
Secondary Variable	360 msec
Rangeability
Primary Variable	50:1

WPC003.a

EJX118A Process Connections

	High-Pressure Side	Low-Pressure Side	Size	Extension	Flange
	Process connection Type		Size	Extension	Flange
	Flush Type	Flush Type	3-inch 2-inch 1-½-inch	N/A	JIS 10K, 20K, 30K
					ANSI 100#, 300#, 600#
					JPI Class 150, 300, 600
					DIN PN10/16, 25/40, 64
	Extended Type	Extended Type	4-inch 3-inch	2-inch 4-inch 6-inch	JIS 10K, 20K
					ANSI 150#, 300#
					JPI Class 150, 300
					DIN PN10/16, 25/40
Combination
	Extended Type	Flush Type	Low-Pressure Side: 3-inch High-Pressure Side: 4-inch	Low-Pressure Side: N/A High-Pressure Side: 2-inch 4-inch 6-inch	JIS 10K, 20K
					ANSI 150#, 300#
					JPI Class 150, 300
					DIN PN10/16, 25/40

EJX118 PC.a

EJX118A Capsules

MSC007.a

MSC008.a

Graphics not to scale

Flushing Ring

A flushing ring a round device that is place between the diaphragm seal and the process connection. The device has two 1/4-inch ports that can be used to run a flushing solution across the face the seal to clean it. If you need a different size port, Yokogawa also offers Flushing Rings supplied by a global partner WIKA.

Communicators

Yokogawa manufactures a communicator for your needs. Yokogawa communicators are available for BRAIN Protocol, HART Protocol, FOUNDATION Fieldbus, PROFIBUS PA, ISA100, or Modbus. All out communicators are compatible with Yokogawa products as well as other products on the market.

Remote Indicators

Yokogawa offers a range of loop powered and FOUNDATION Fieldbus remote indicators that can be used to locally monitor data from field instruments installed in difficult to access locations.

Application Note

Reverse Osmosis Filter Monitoring

What is a Flushing Ring (Calibration Ring)?

(KB-000-0020)

Yokogawa diaphragm seal systems are available with an optional Flushing Ring. A flushing ring is metal donut-shaped ring installed between the seal and the customer process connection. It is a wetted part. The ring has a port(s) that can be use...

Edition 2
