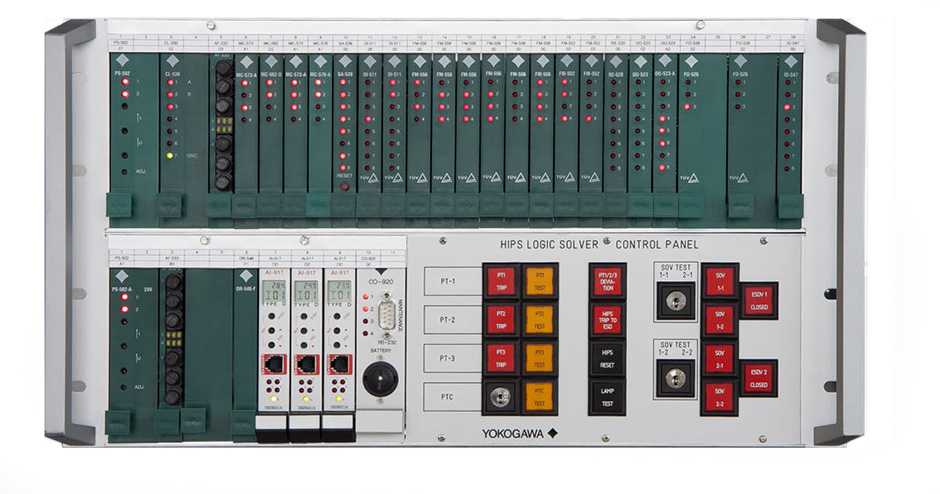

ProSafe-SLS Safety Instrumented System
ProSafe-SLS is Yokogawa's solid-state, hard-wired safety instrumented system designed to meet the highest safety integrity requirements. The product line meets specific requirements for individual safety instrumented systems and offers all safety integrity levels (SIL 3-4) for the oil and gas, petrochemical, chemical, nuclear and conventional power industries.
ProSafe-SLS safety instrumented system is also fully integrated with Yokogawa's CENTUM VP process control system as well as the FAST/TOOLS SCADA software package.
The modular design of the ProSafe-SLS safety system allows for building all kinds of applications, ranging from small HIPS systems to large ESD and F&G systems while maintaining the fastest possible response time to follow any process demand.
ProSafe-SLS provides the ultimate SIS solution when safety allows no compromise.
Safety-by-Design
The ProSafe-SLS is a safety instrumented system that was designed for applications that require the highest Safety Integrity Levels (SIL 3 & 4).
It employs solid-state elements to process the functional logic. This technology is capable of executing all typical safety tasks, featuring Non-Safety-Critical functions such as interfacing with a Human Machine Interface, Process Control System, Sequence of Event Recording, or SCADA system.
The sophisticated design and superior safety performance have created the safety reference standard for solid-state safety instrumented systems.
A radical safety achievement is the elimination of software for an operating system and for self-diagnostics. Instead, a unique inherent self-test technology is employed, throughout all safety-related parts of the ProSafe-SLS system.
Details
System Structure
A system with a modular approach
 |

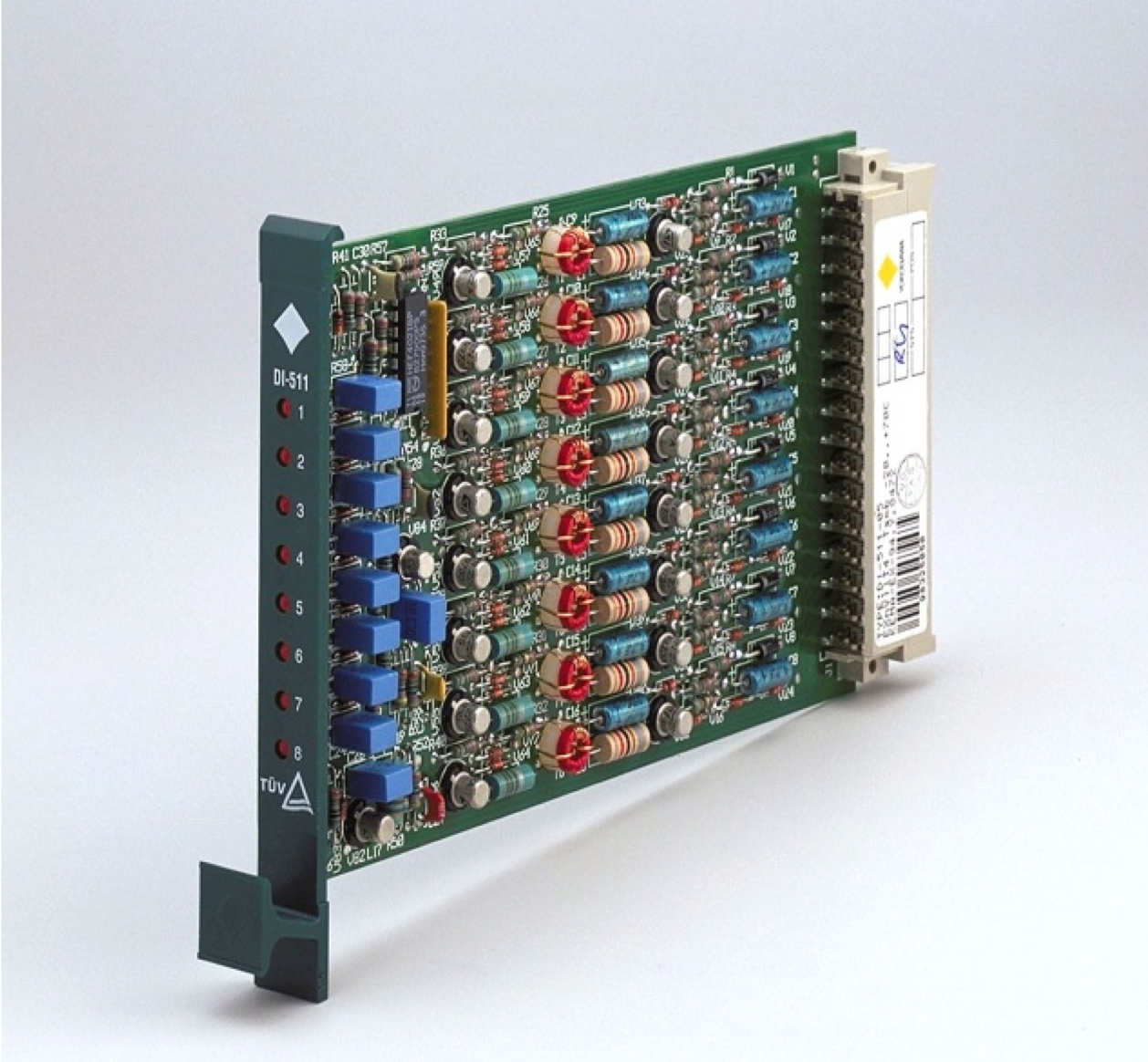

| 8-channel digital input module |
The modules that are used to build a system solution are grouped in various categories as summarized below:
- Input modules
- Logic & Timer modules
- Output modules
- Power & Clock modules
- Auxiliary modules
- Communication & Interface modules
Interconnection wiring actually programs the application into the system.
The ProSafe SLS Safety Instrumented System Range
Yokogawa covers the spectrum of requirements for today’s safety systems with two product lines, ProSafe-SLS and ProSafe-RS, each geared to the needs of specific safety applications. For the highest- integrity, SIL 4-rated applications, the ProSafe-SLS platform offers a superior solution - for the spectrum of applications in oil and gas, petrochemical and chemical, and conventional and nuclear power industries, including:
- Emergency-shut-down systems in safety-critical process units
- Environmental and asset protection systems
- Burner management systems for incinerators, furnaces and boilers
- Compressor protection systems for rotating and piston type compressors
- Process and emergency shutdown systems on offshore platforms and FPSO’s
- High integrity protection systems for critical
processes and pipeline protection - Wellhead protection systems and sub-sea
systems - Liquefied natural gas (LNG) storage and loading
installations - High-integrity protection systems in chemical
process plants as well as applications where
previous-generation relay -based systems are
to be upgraded.
